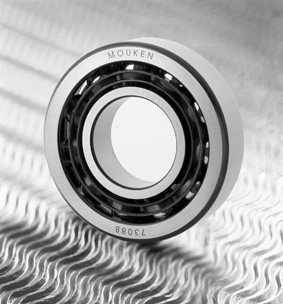

Single Row Angular Contact Ball Bearings
Single Row Angular Contact Ball Bearings are rigid, non-separable radial bearings.
They are suitable for high - speed applications and can accommodate both radial and thrust forces including combined loads and tilting moments.
As single row angular contact ball bearings accept thrust loads in one direction only, they must be used in pairs where a bearing has to be adjusted against another to guide the shaft in the opposite direction.
Angular contact ball bearings transfer the loads acting on the bearing at a certain angle, the so - called ¡°contact angle; ¦Á¡± towards the shaft centre line (see Fig. 1).
The ability of Single Row angular contact ball bearings to accommodate thrust loads depends on their contact angle. The higher the angle the better the ability for accepting thrust loads. |
